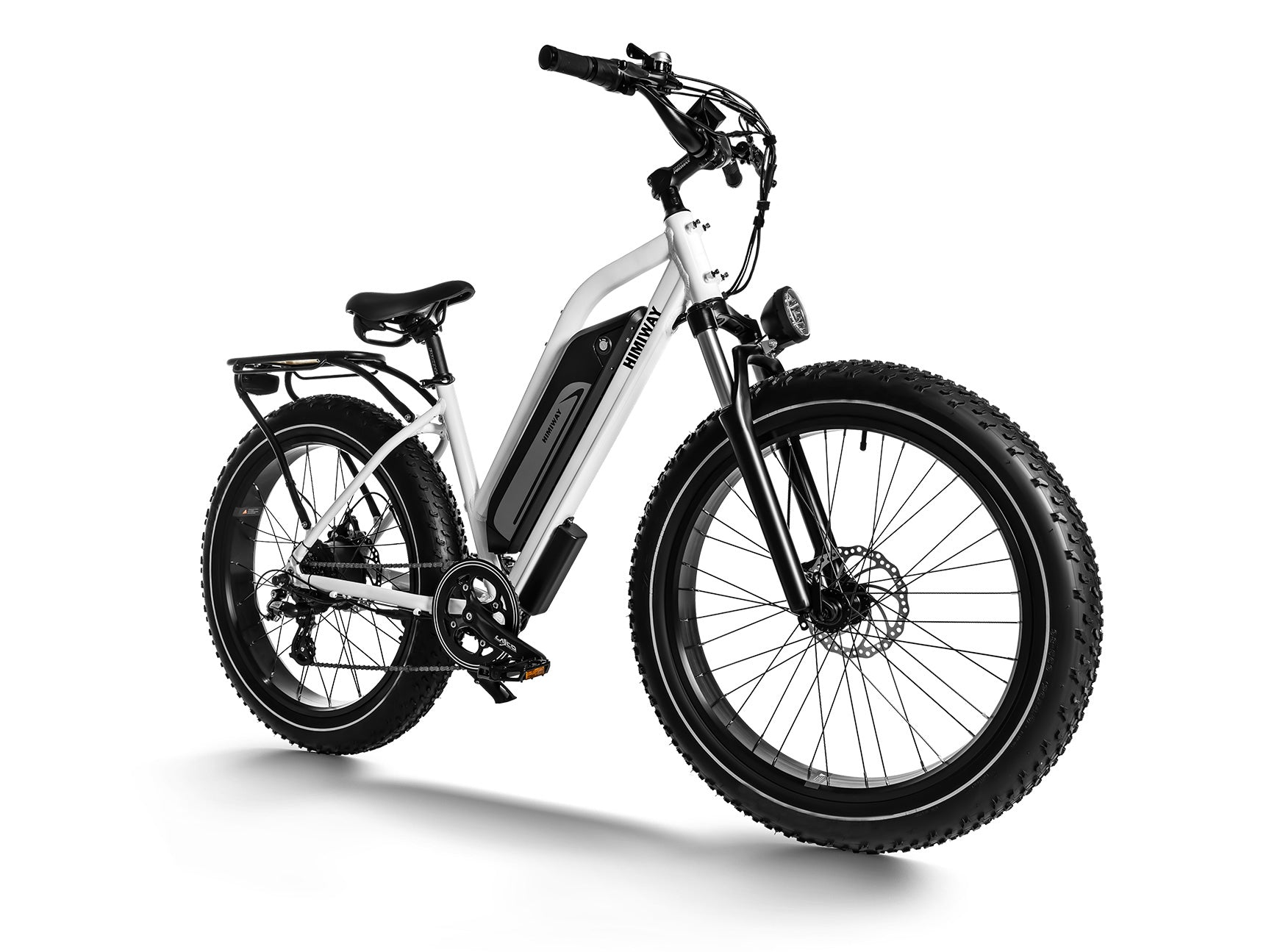

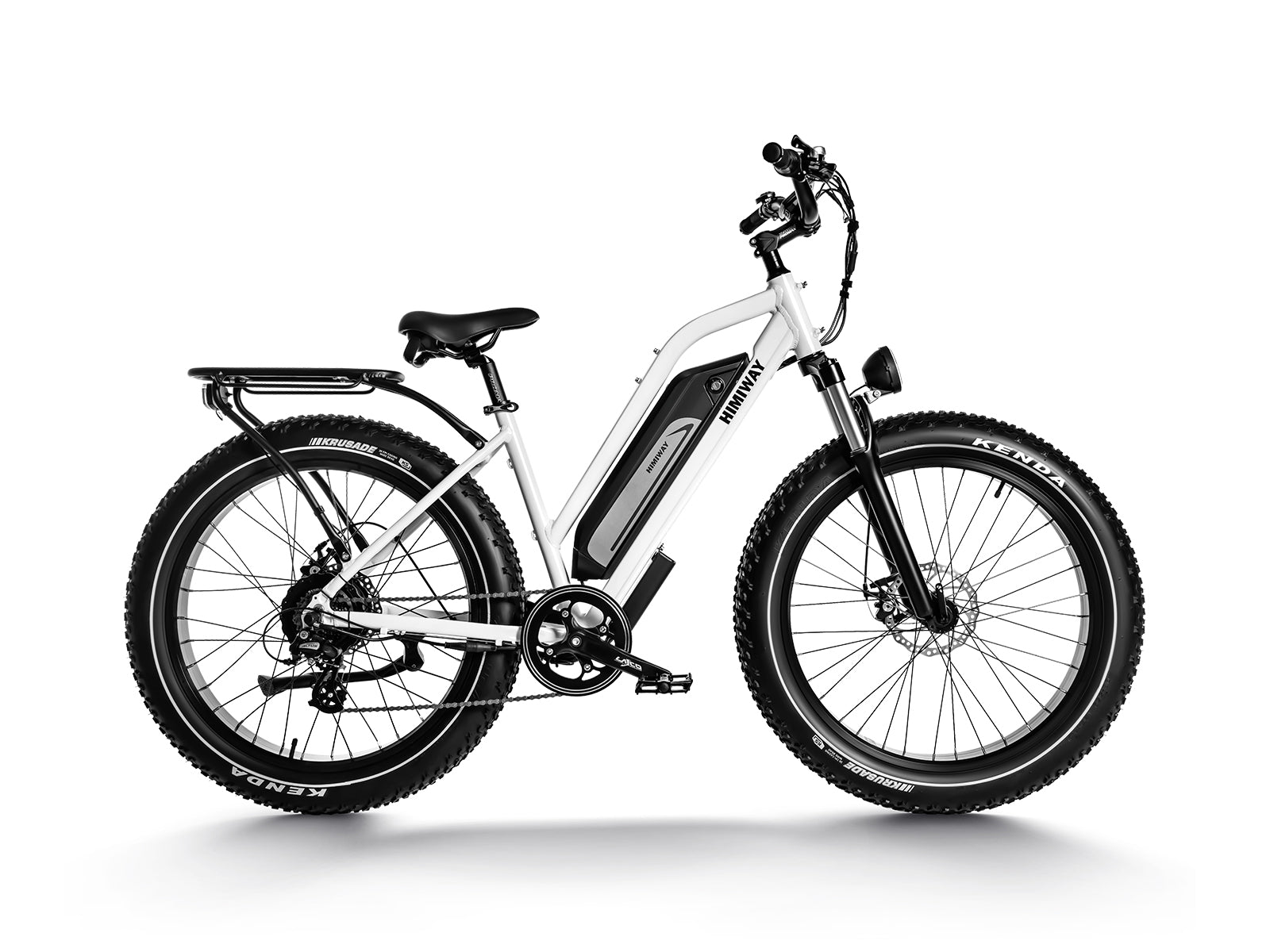

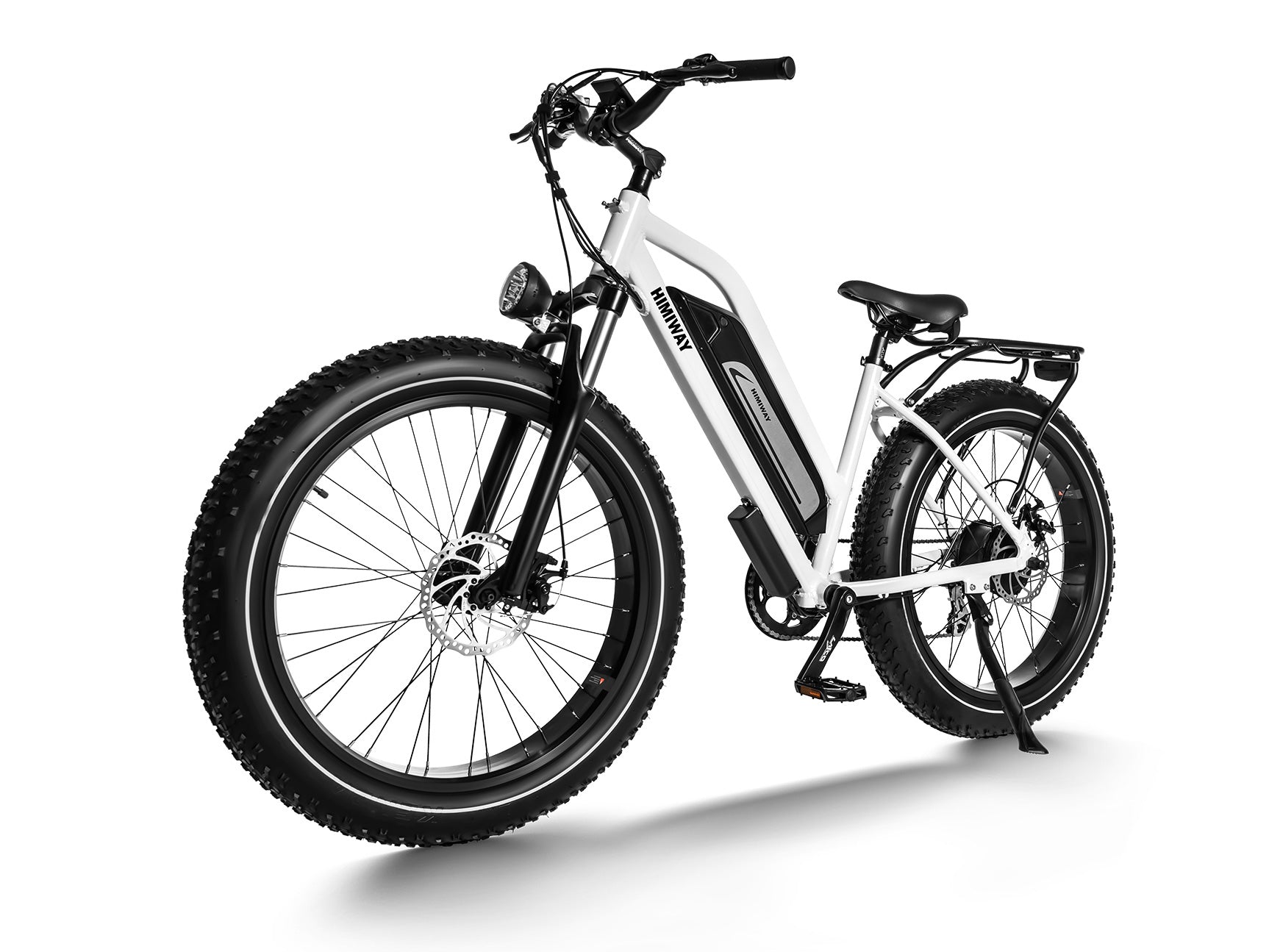

Himiway Cruiser Step Thru Electric Bike

The Himiway Cruiser Step Thru is the perfect bike for those who want elegant style and outstanding performance. Featuring a low step design based on the Cruiser frame, this bike is extremely comfortable to ride and offers excellent stability thanks to its 4-inch-wide fat tires. The Shimano 7-speed gear shift system ensures you make the most of your pedaling power, while the powerful ternary lithium battery lets you enjoy a long ride with plenty of torque. Whether you're cruising around town or tackling tougher terrain, the Himiway Cruiser Step Thru is up to the task.

Superior Battery: Smaller Size & Longer Range & Shorter Charging Time

Updated to 48V 17.5AH Samsung/LG Lithium-ion Battery. The battery is one of the most important components of an electric bike. Himiway electric bikes are equipped with Samsung/LG 48V 17.5Ah batteries to ensure a long life expectancy and distinguished performance. The single range can be up to 60+ miles per charge on pedal-assist mode and around 35 miles on pure electric power mode. Moreover, Himiway offers a 2-year warranty on batteries

Highlights

-35-60 Miles Pre Charge

-840wh Total Battery Capacity

- 6-7 Hours to Fully Charged

Specifications

• Battery 48V 17.5Ah Samsung/LG lithium battery
• Range 35~60 Miles

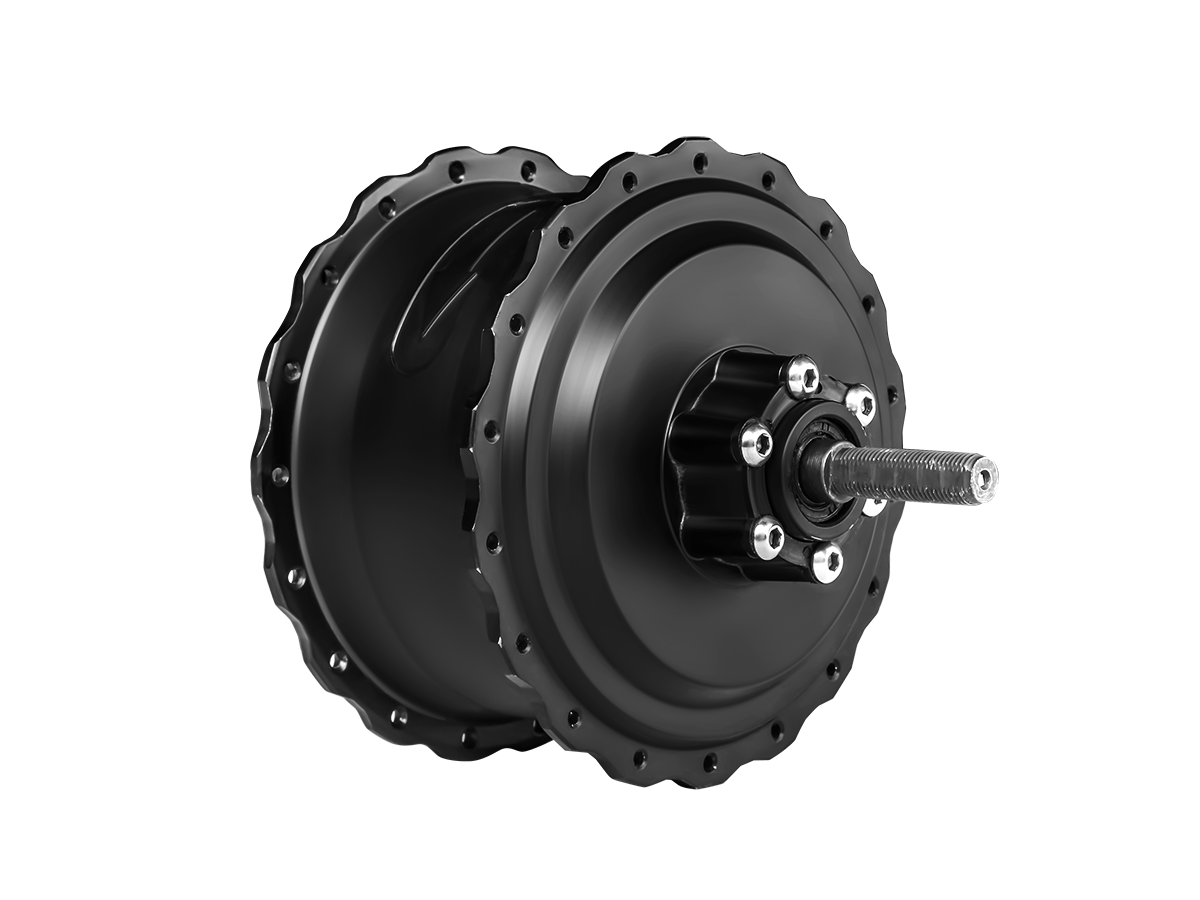

• Hub Motor 750W brushless gear motor
• Total Payload Capacity 350 lb.
• Recommended Rider Heights 5'1" ~ 6'4"
• Charger US standard 2.0 A smart charger
• Controller 48V / 22A

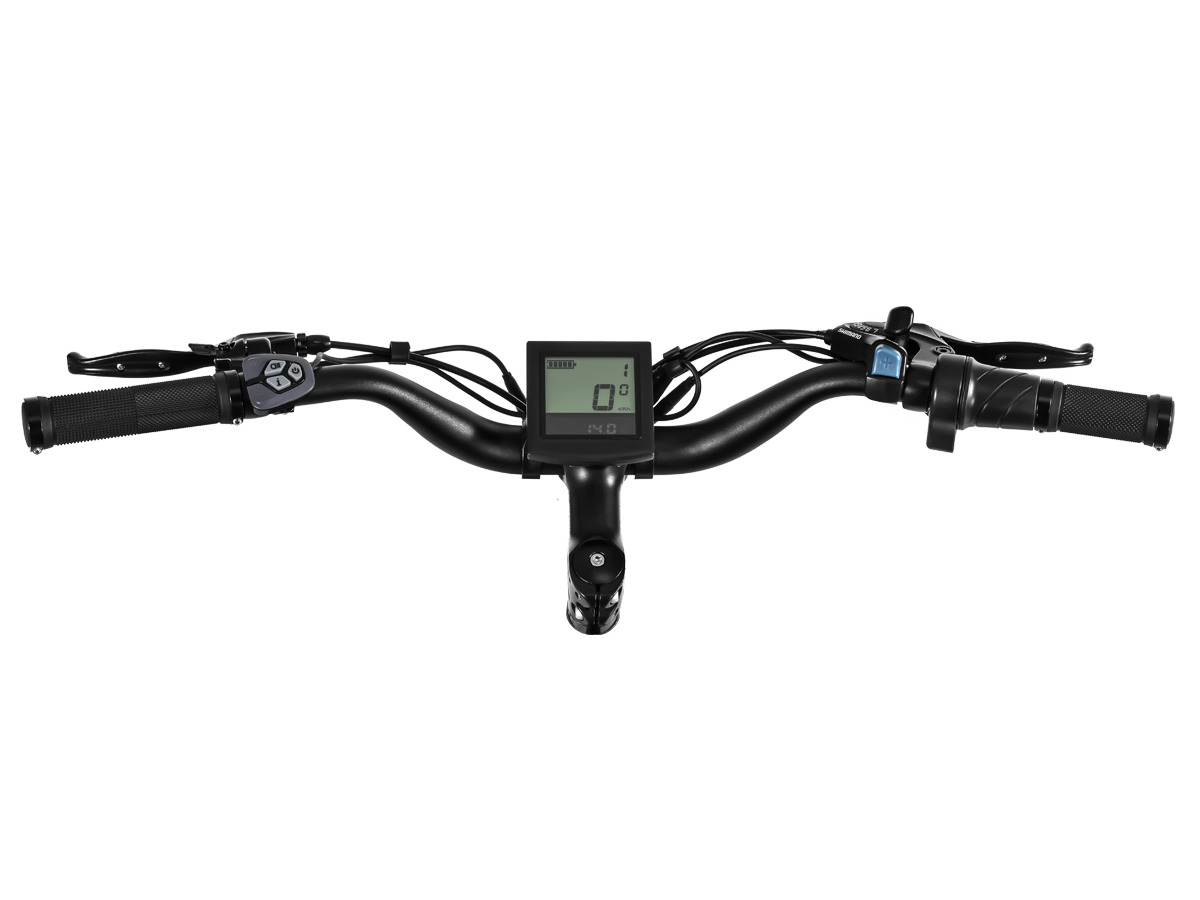

• Display LCD display with USB charging
• Weight 72lb.
• Pedal Assist Intelligent 0~5 level pedal assist
• Tires 26" x 4" Kenda fat tires
• Brake lever Aluminum alloy comfort grip levers with motor cutoff switch

• Rear Light Integrated Taillight

• Freewheel Shimano 7 speed gear shift system

• Brake180MM Mechanical Disc Brakes
• Chain KMC chain
• Stem MA-400 28.6*90*31.8MM
• Crank 46T*170MM 4-jaw L/R forged alloy
• Gearing Shimano- 14-28T BROWN/BK
• Front Fork Alloy front suspension fork with lockout and adjustment
• Throttle Half twist throttle
• Pedal Alloy pedal with reflectors
• Bike Frame 6061 Aluminum frame
• Front Light 48V LED light
• Saddle Velo soft saddle
• Seat Post 30.4*300mm Alloy Seatpost
• Kickstand Heavy duty aluminum
• Spokes 12-gauge stainless steel, black

 Geometry



• A -- Total Length 75"
• B -- Handlebar Height 46.5"
• C -- Wheelbase 45"
• D -- Minimum Seat Height 28"
• E -- Maximum Seat Height 36.5"
• F -- Chain Stay Length 19"
• G -- Standover Height 28"
• H -- Top Tube Length 22.5"
• I -- Wheel Diameter 28"
• J -- Head Tube Length 6"
• K -- Handlebar Length 26"
